Guard Rail Configuration Tool

Overview

An interactive browser-based calculator that lets maintenance teams configure a custom guard rail assembly for any conveyor location. The technician enters three field measurements and the tool automatically generates the full panel layout, drill guide, bill of materials, structural analysis, and downloadable 3D-printable STL files — no engineering background required.

This tool was built to enable facility-wide rollout of the guard rail system without needing an engineer involved in every installation. It turns a multi-hour design and calculation process into a few minutes of data entry.

The Interface

The technician enters three field measurements — height difference, distance from the mounting hole to the conveyor edge, and total guard rail length. Everything else defaults to standard values but can be adjusted for special cases.

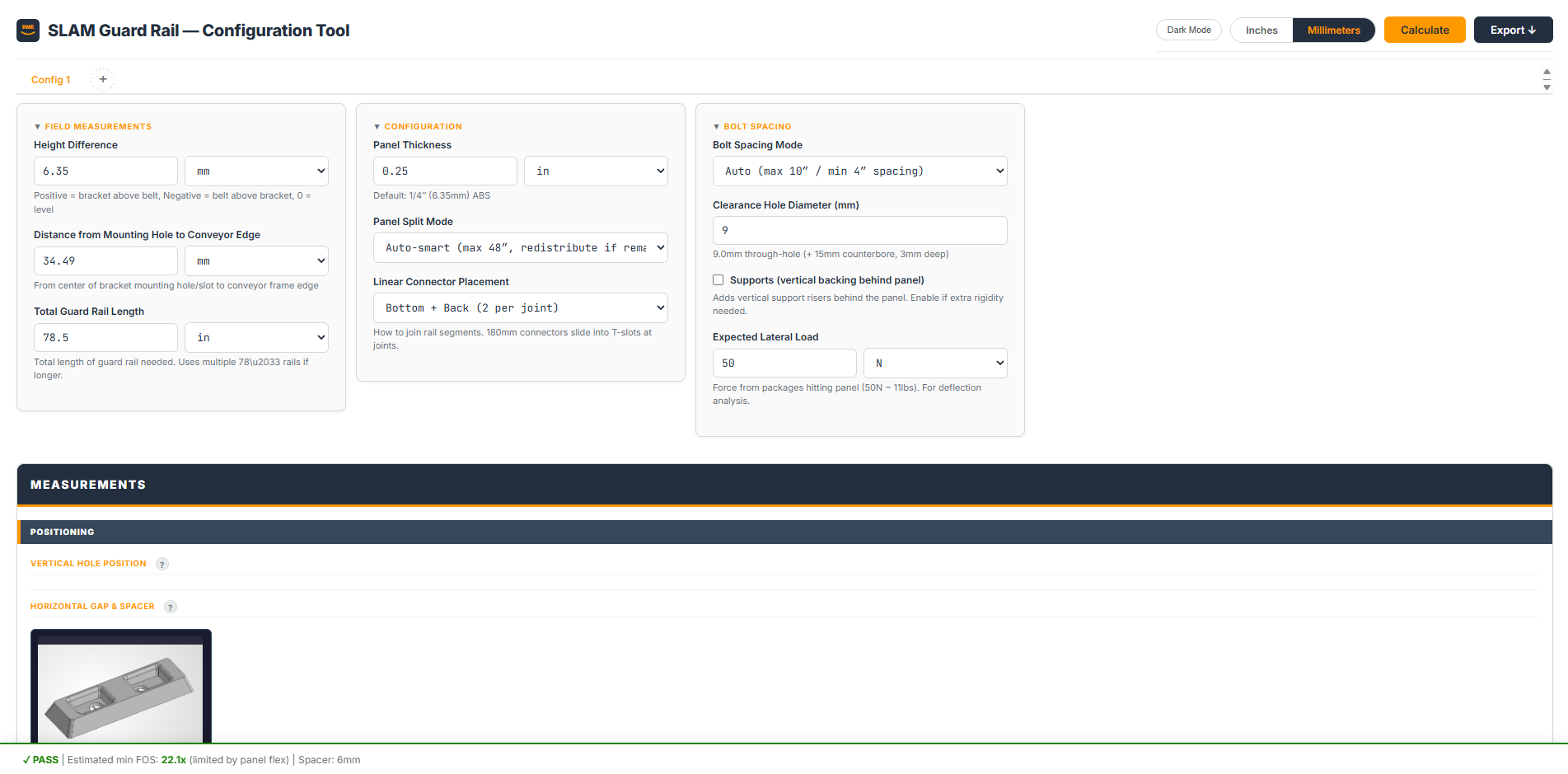

Input interface — three field measurements drive the entire configuration

Automated Output

Hitting Calculate instantly generates a complete build package:

• Panel & bolt layout — optimal panel sizes, quantities, bolt counts, and exact positions
• Measurements & validation — vertical/horizontal positioning with automatic warnings for out-of-range inputs
• Structural analysis — deflection, bending stress, and factor of safety for every component under the specified load
• Full bill of materials — itemized parts list with live cost estimate
• Shop sheet — cut list and per-panel drill guide with exact hole positions and counterbore specs
• 3D-printable STL files — auto-generated spacer and panel aligner bracket, downloadable directly from the tool

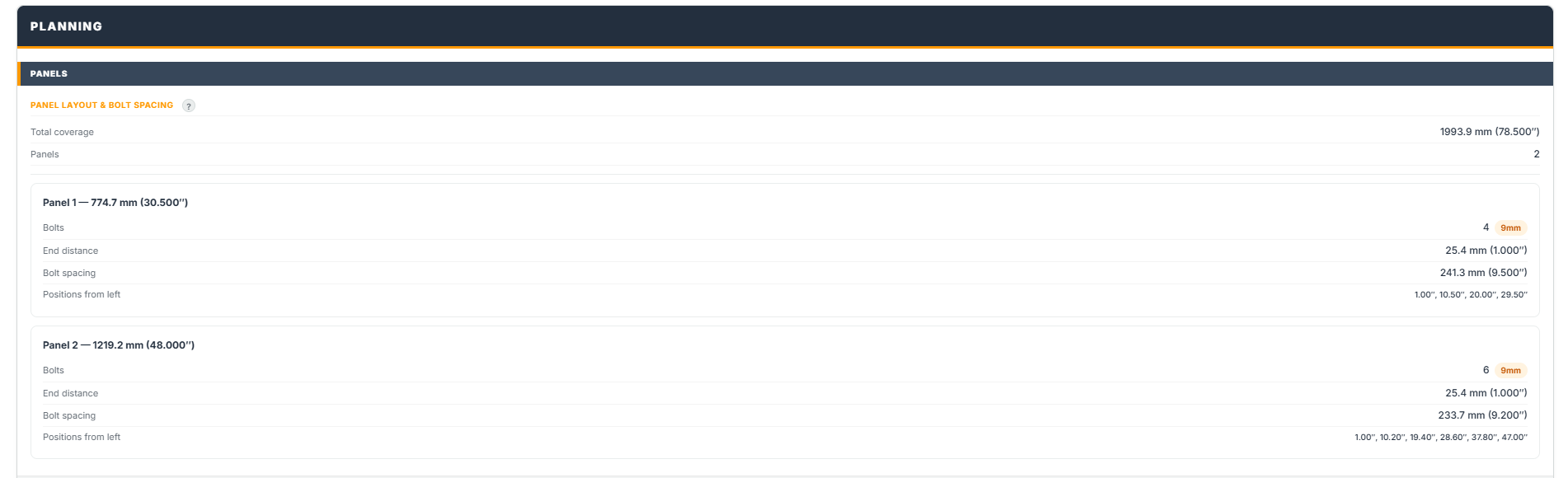

Panel layout — bolt counts, spacing, and positions per panel

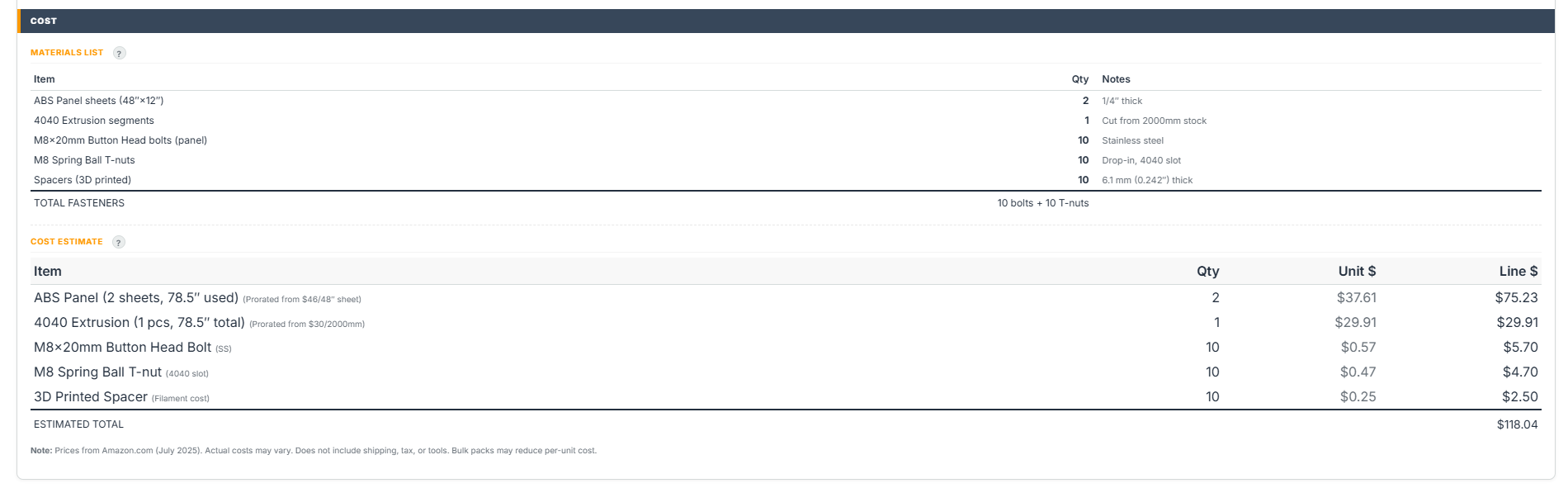

Bill of materials with live cost estimate

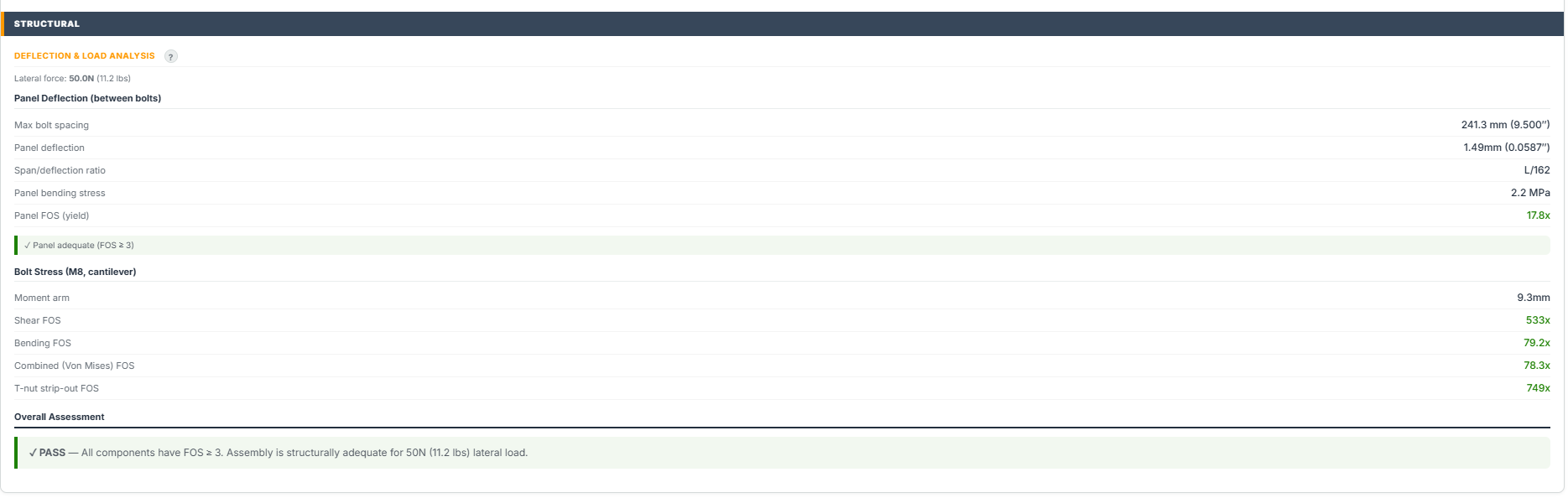

Structural analysis — deflection, bolt stress, and FOS for every component

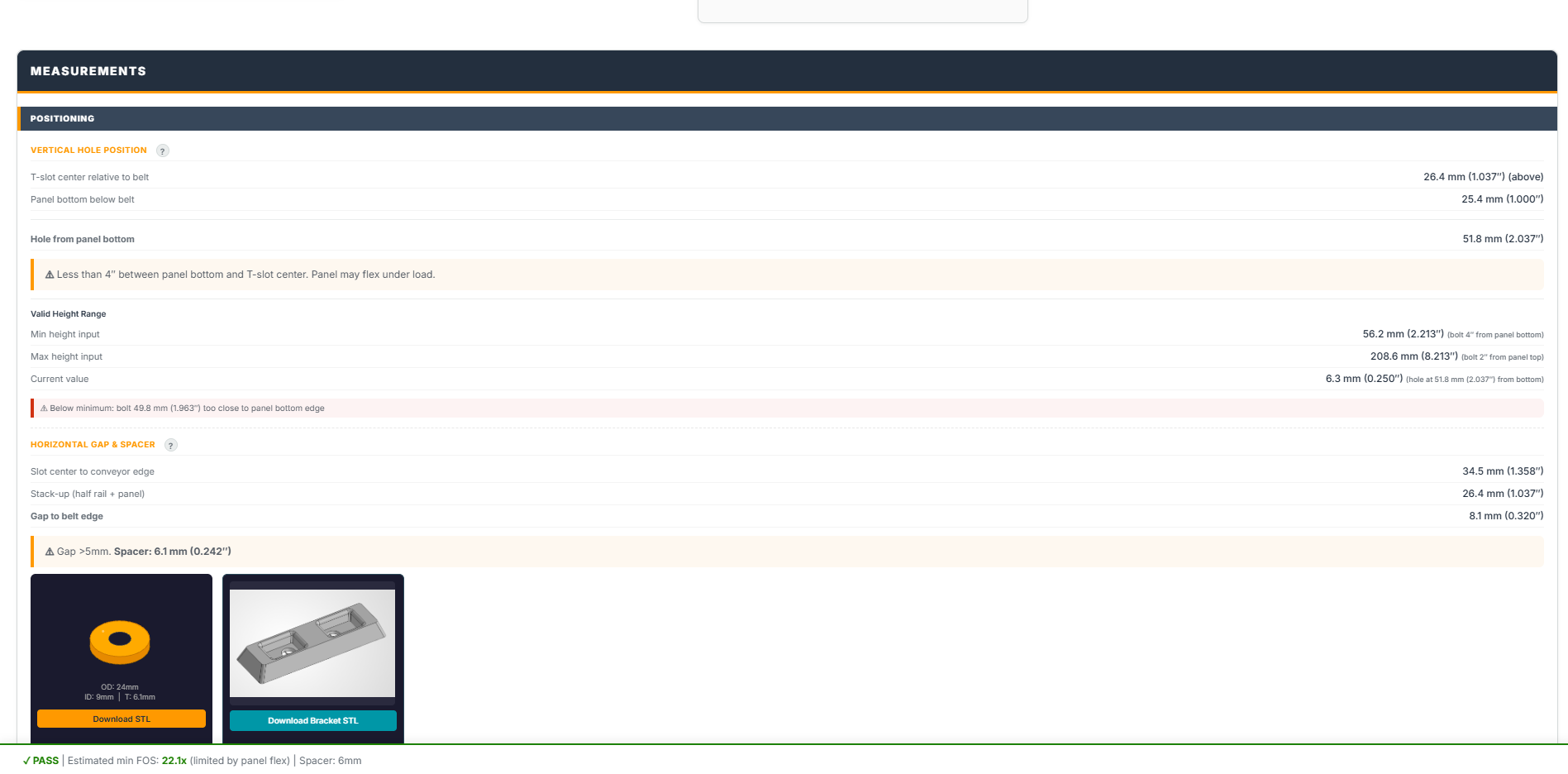

Positioning validation with downloadable spacer & bracket STLs

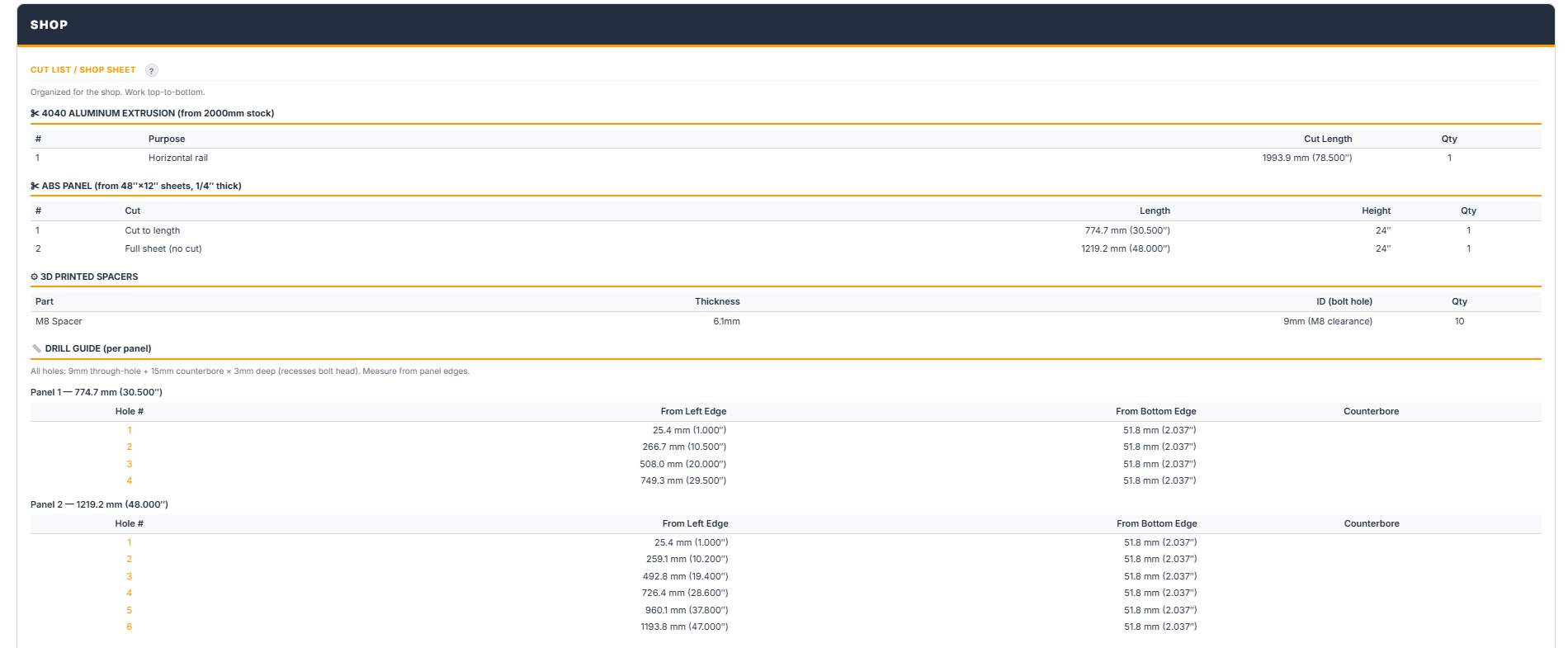

Shop sheet — cut list and per-panel drill guide

Visual Diagrams

The tool renders scaled front and top-down diagrams so the technician can visually confirm the layout matches the target location before cutting anything.

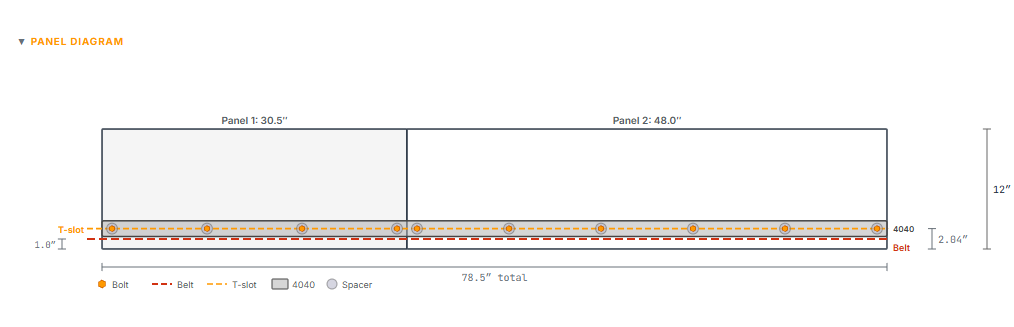

Front view — panels, bolts, T-slot, and belt line

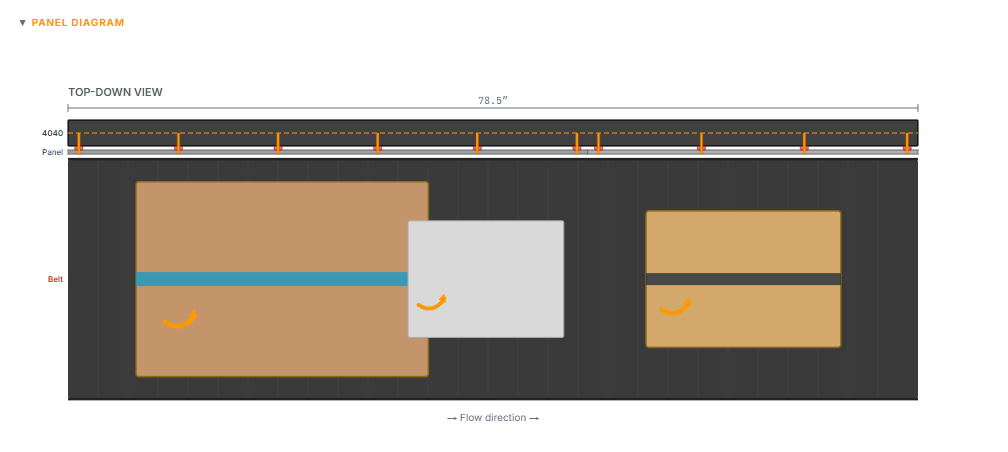

Top-down view — panel coverage relative to package flow

Impact

• Reduces guard rail configuration from a multi-hour engineering task to a few minutes of data entry
• Eliminates the need for 3D modeling — STL files are auto-generated from the input measurements
• Standardizes the design and hardware across every installation facility-wide
• Runs in any browser with zero installation; exports to PDF and Excel for procurement and records
