Problem

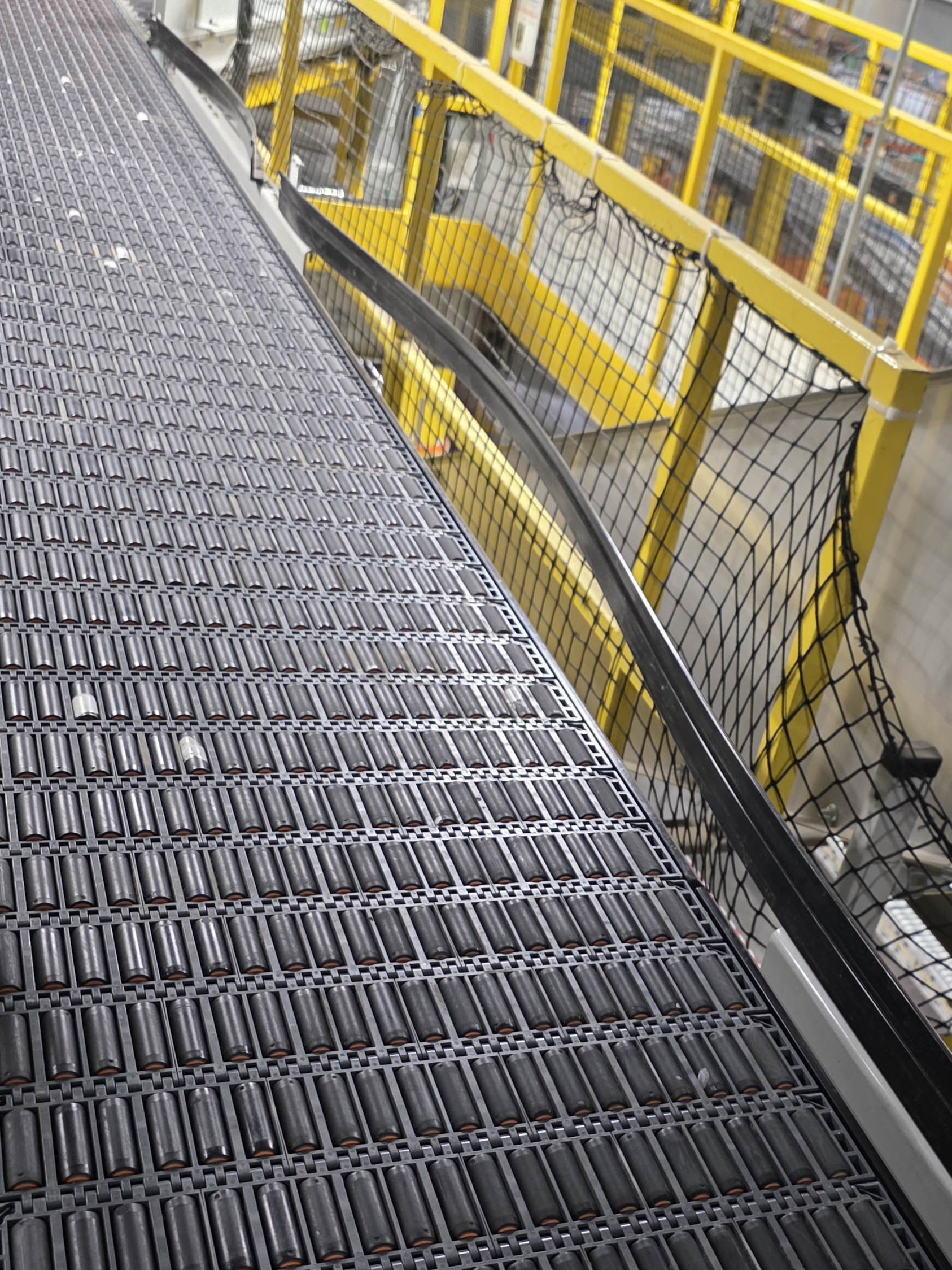

The SLAM line conveyor system at TPA4-SFC had multiple sections where existing factory guard rails bent outward from repeated package impacts, creating unguarded gaps. Packages traveling along the belt shift laterally and fall from the conveyor onto the floor — requiring manual retrieval by RME technicians and causing delivery estimate accuracy (DEA) misses.
The targeted section measured 125 inches on SLAM Line 501, but 9 SLAM lines across the facility had similar gap locations — making this a systemic issue.
By The Numbers
Source: 82 shift reports from #tpa4-dea-risk Slack channel (Feb 15 – Aug 2, 2026). 1,017 total drops observed (FHN shift only) — 2× shift multiplier applied. Cost based on $2.50/package DEA miss estimate.
What I Did
- Took on-site measurements of the existing bracket interface (slot dimensions, clearances, belt-to-bracket distances) and collected 29 package weight samples to derive design and worst-case loading conditions
- Developed 8 guard rail concepts ranging from simple elastic bands to complex roller systems
- Evaluated all concepts through a weighted decision matrix across 6 criteria (structural performance, serviceability, safety, implementation simplicity, cost, durability)
- Performed structural deflection analysis comparing 2040 and 4040 aluminum extrusion profiles using simply-supported beam theory
- Conducted vibration torque analysis using the Junker loosening criterion to determine minimum tightening torque for M8 mounting bolts

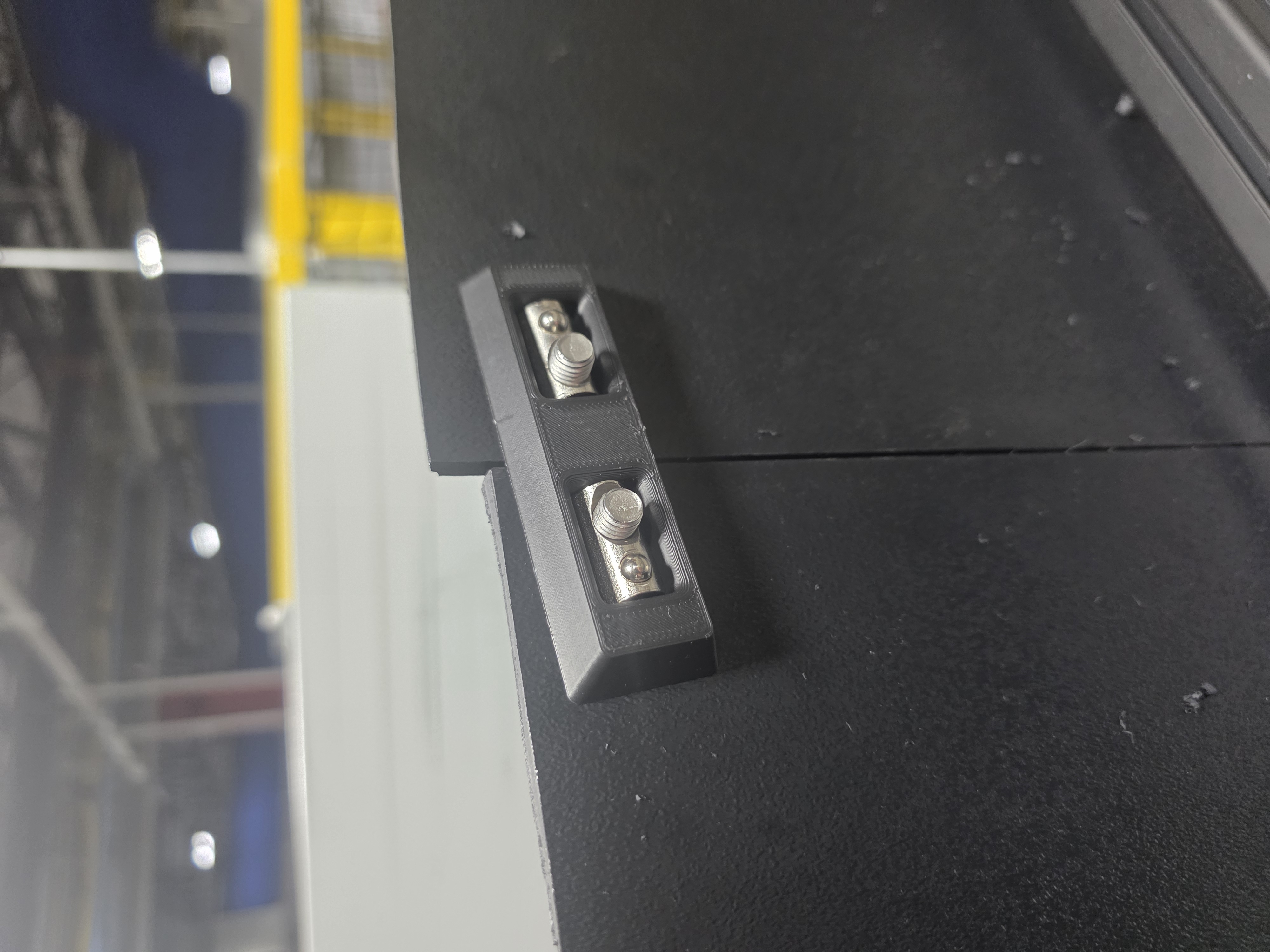

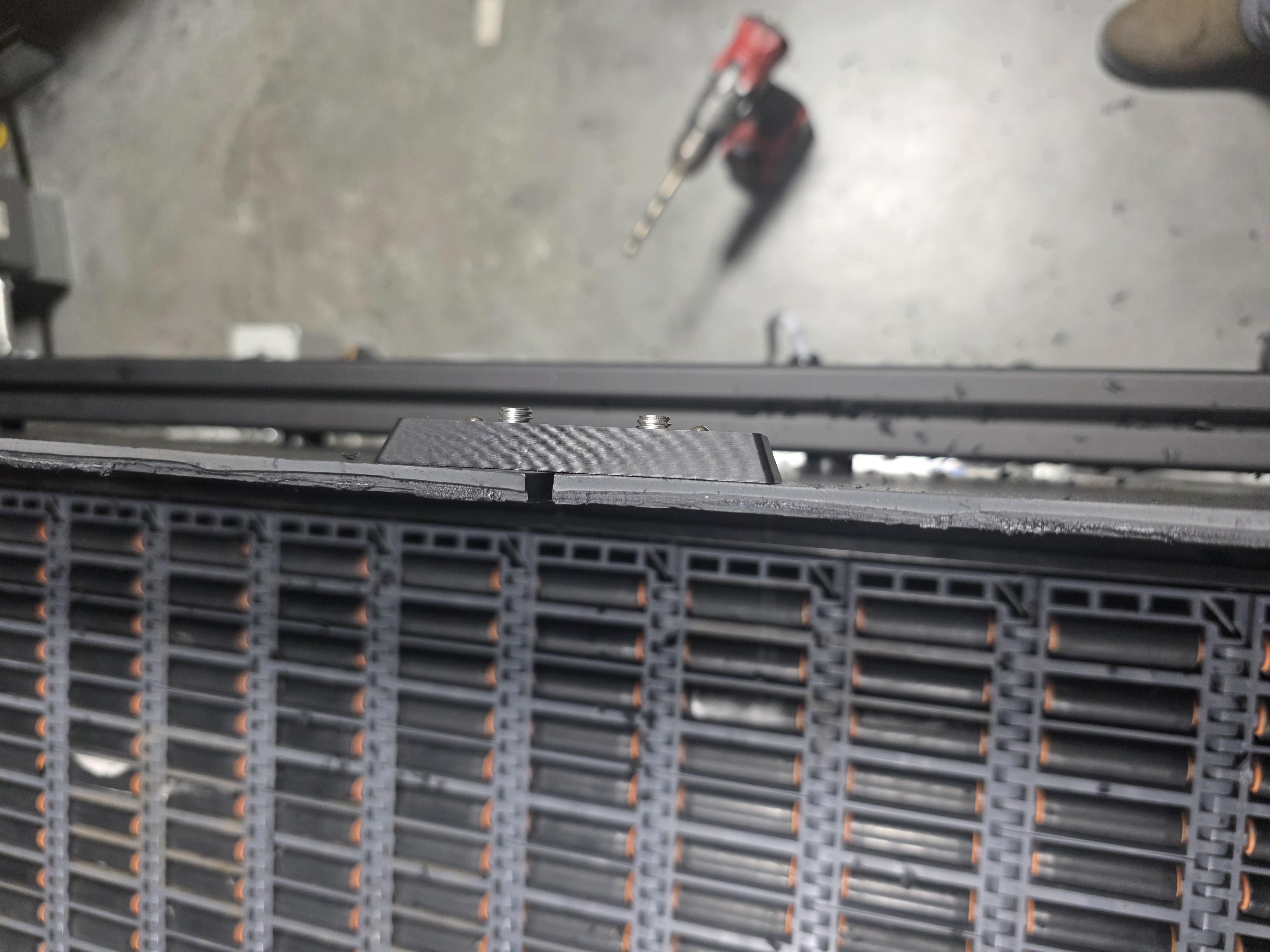

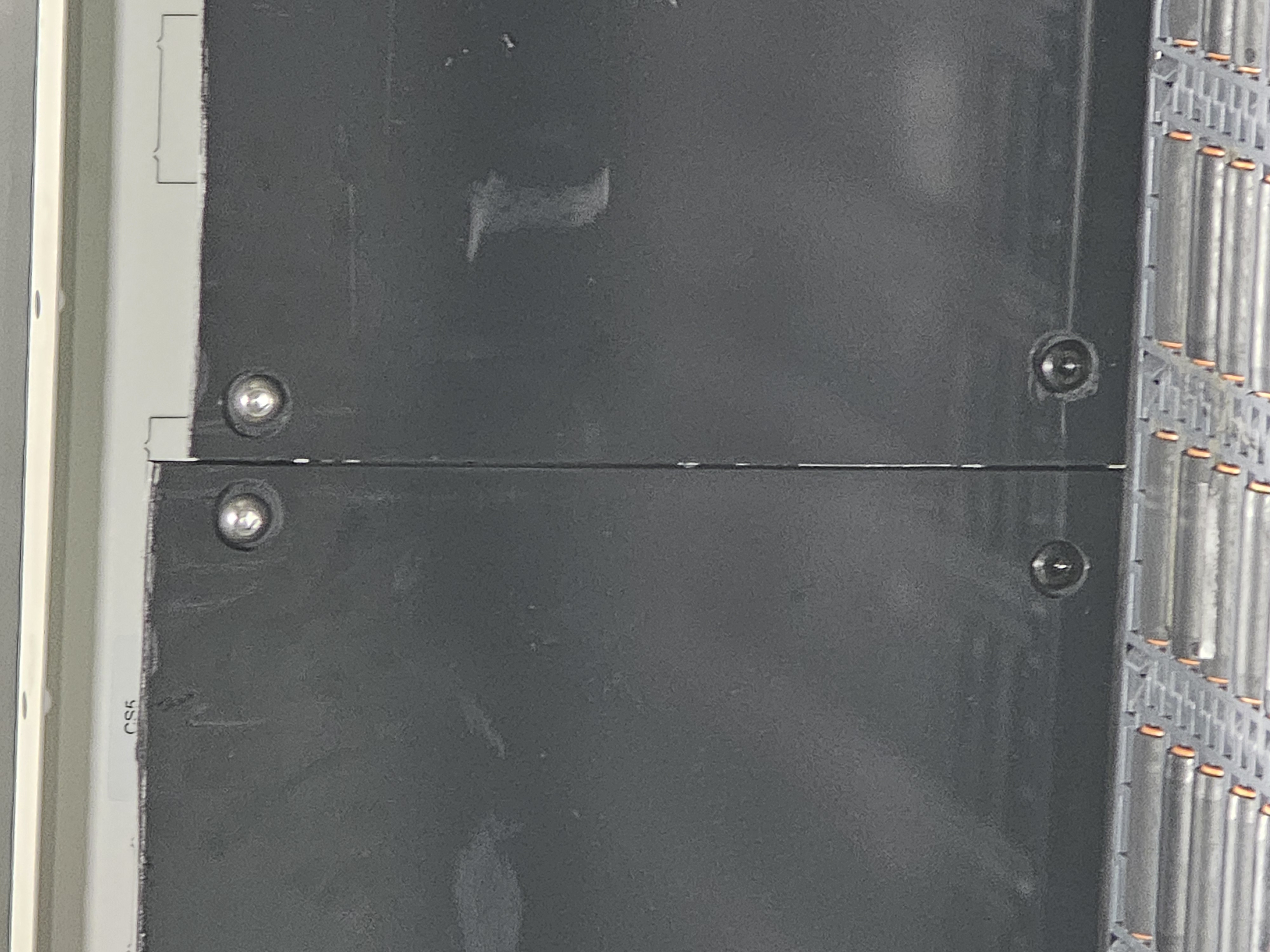

- Designed a custom 3D-printed panel aligner bracket in SolidWorks with built-in center-marking pins and T-nut retention slots
- Developed panel cutting plans, drill guides with exact hole positions and counterbore depths, and a complete BOM
- Built an HTML/JavaScript configuration tool for facility-wide rollout
- Wrote a full engineering design report and handoff document; presented to senior leadership
Concept Selection
Highest structural performance, excellent serviceability (two-bolt removal), uses existing mounting interface with zero permanent modification, $198 material cost.
Adequate for lighter loads but failed worst-case deflection criteria on the unsupported 76.5-inch span.
Structural Analysis
Simply-supported beam deflection: δ = PL³/48EI | 6063-T5 Aluminum | E = 68.9 GPa
| 2040 Profile | 4040 Profile (selected) | |
|---|---|---|
| Moment of Inertia (I) | 15,500 mm⁴ | 74,200 mm⁴ (4.8× stiffer) |
| Typical Load (48 N / 11 lbf) | 6.87 mm deflection | 1.44 mm deflection |
| Worst-Case (297 N / 67 lbf) | 42.51 mm | 8.88 mm |
| Factor of Safety | 0.8 ✘ FAILS | 3.7 ✔ PASSES |
| L/240 Criterion (8.1 mm) | ✘ Fails | ✔ Passes (design load) |
Solution

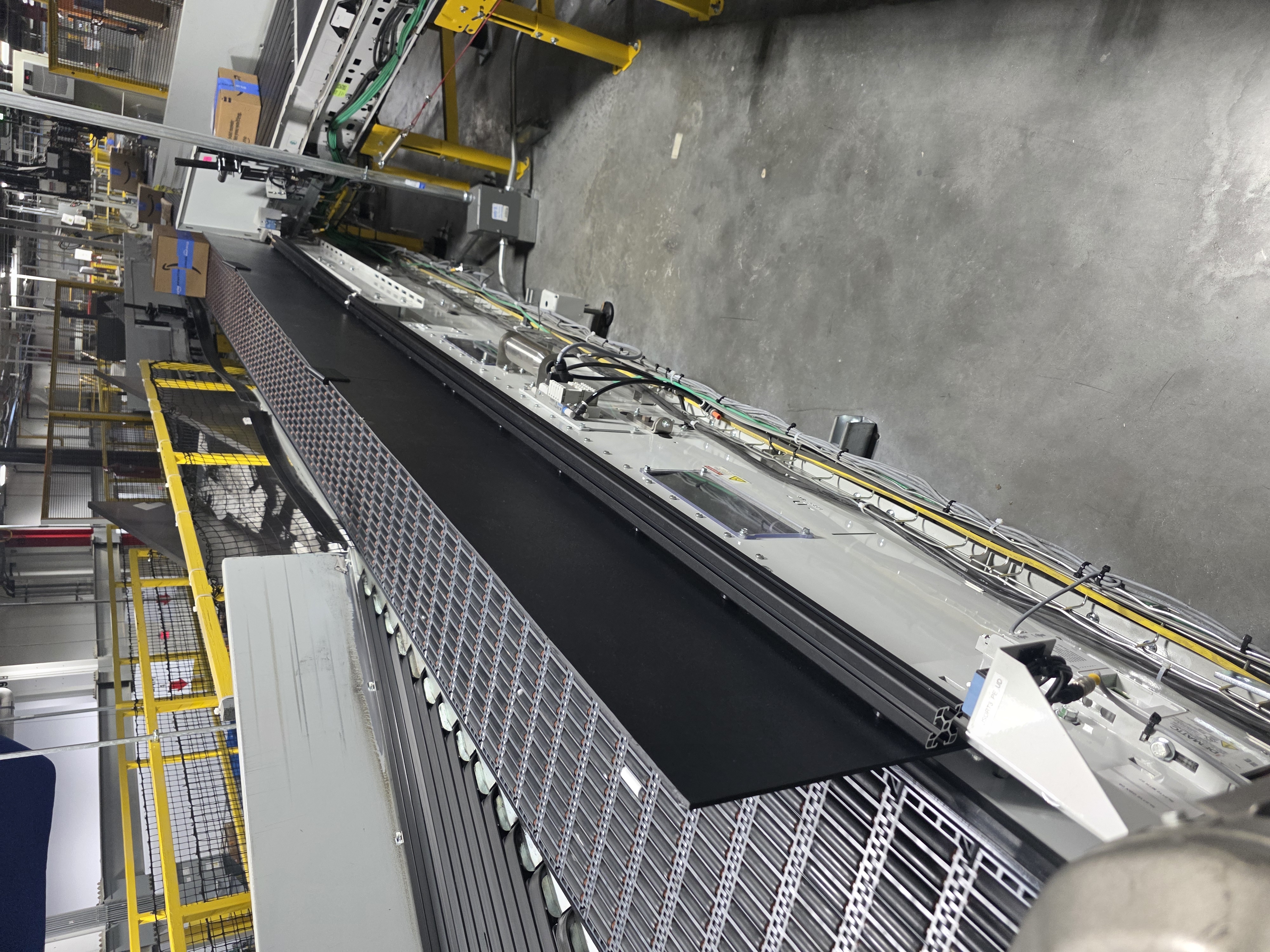

4040 6063-T5 aluminum extrusion with ABS thermoplastic panels. Bolts directly into existing L-brackets via M8 button head screws and 40-series drop-in T-nuts. The entire assembly can be removed by removing two bolts with an Allen wrench, maintaining full service access. Total material cost: $198.

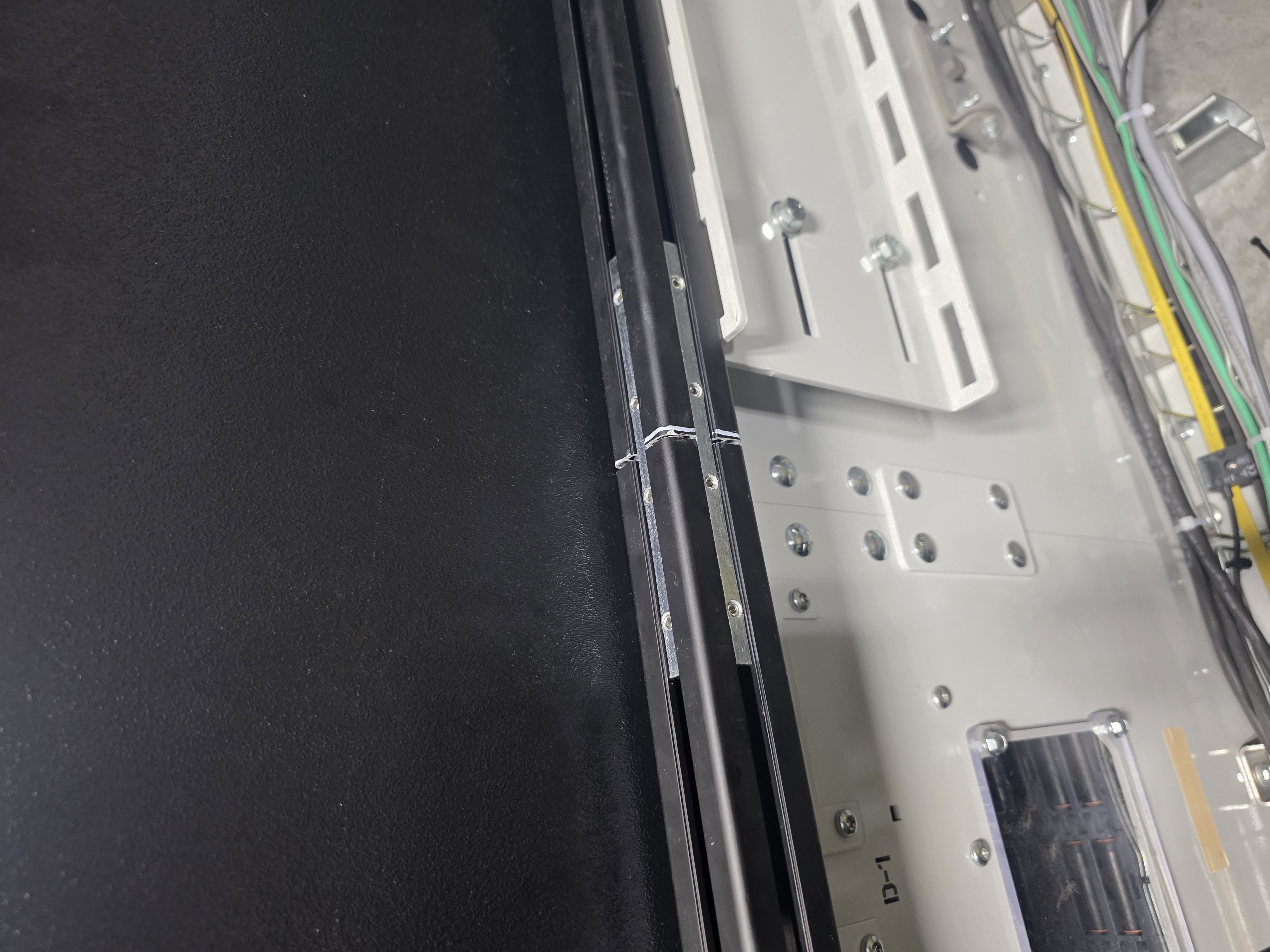

Components: 4040 aluminum extrusion, ABS panels, 3D-printed spacers, M8 bolts + T-nuts, 3D-printed panel aligner brackets, linear connectors.

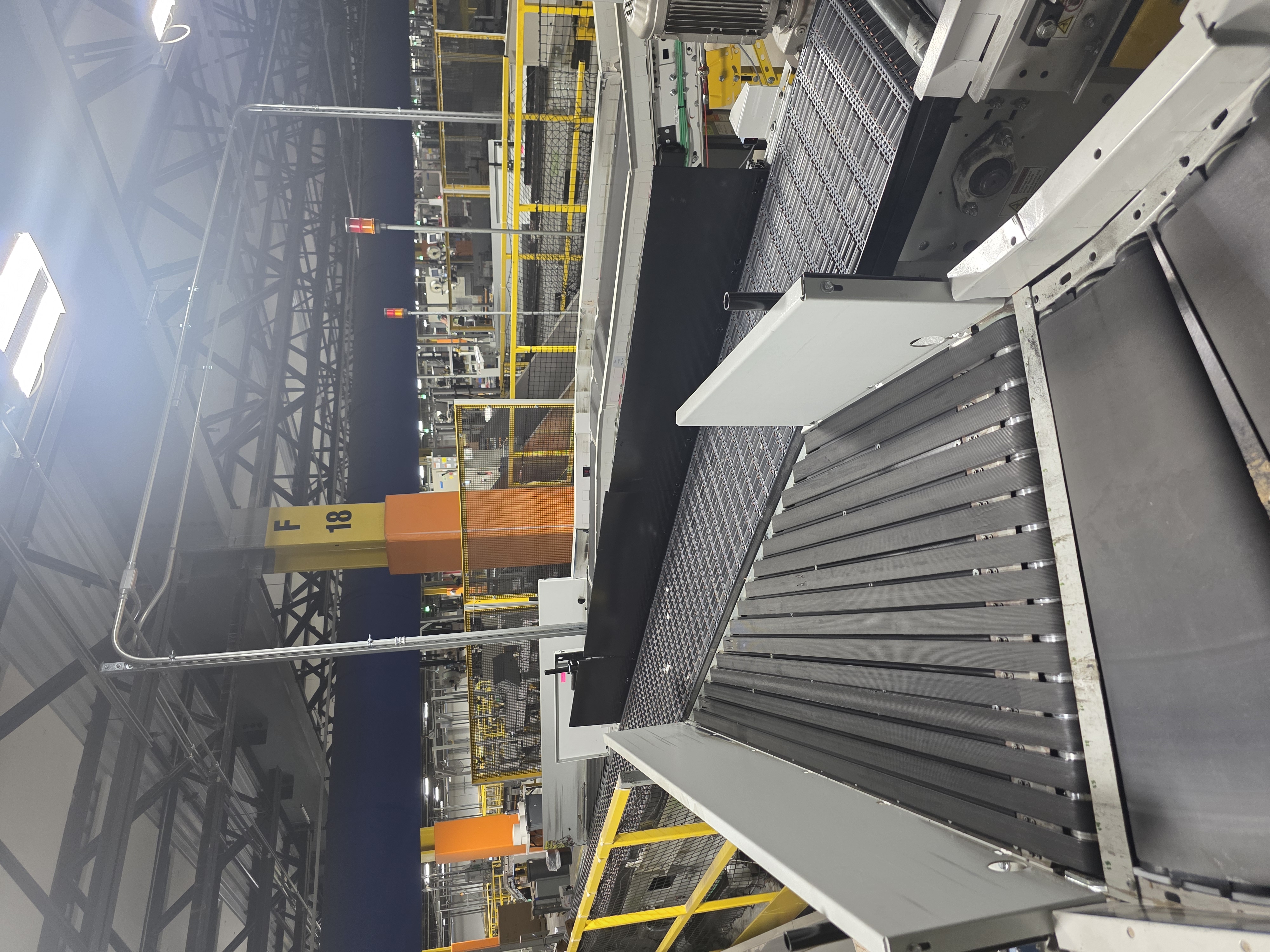

Installation & Details
Results
- 47% reduction in package drops (from 2.3 to 1.2 per day on Line 501) — exceeded the expected 33% improvement from covering 1 of 3 gap locations
- $198 material cost with payback in ~38 days
- Zero permanent modification to conveyor — fully reversible two-bolt installation
- Scalable: facility-wide rollout projected at ~$5,346 total cost for ~$22,000/year savings (~89-day payback)
Return on Investment
| This Install (1 gap) | Full Line 501 (3 gaps) | Facility-Wide | |
|---|---|---|---|
| Cost | $198 | ~$594 | ~$5,346 |
| Annual Savings | ~$1,918/yr | ~$4,081/yr | ~$22,000/yr |
| Payback Period | ~38 days | ~53 days | ~89 days |
Based on $2.50/package DEA miss cost. True cost including RME labor + customer concessions likely $4.50–$7.00+ per package.
